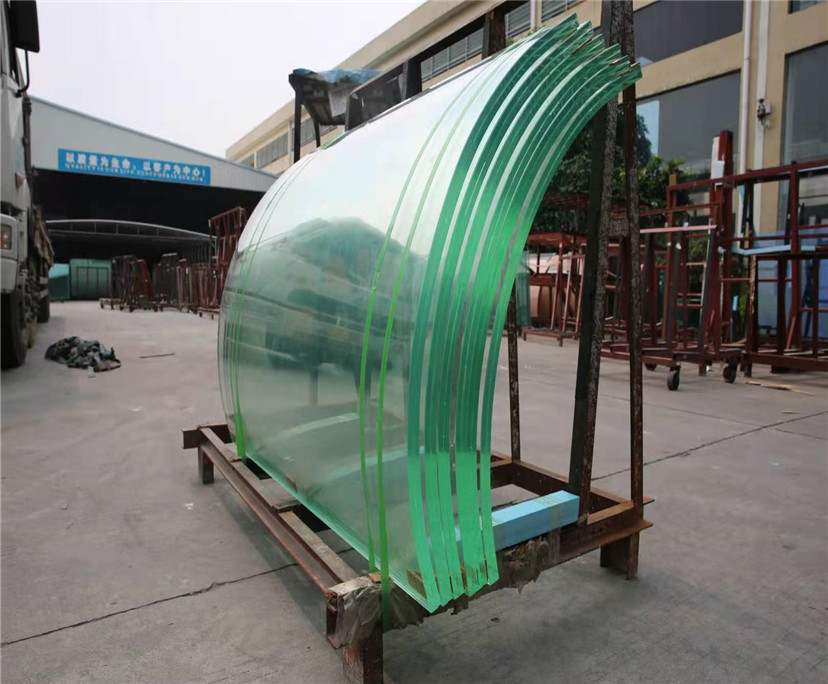

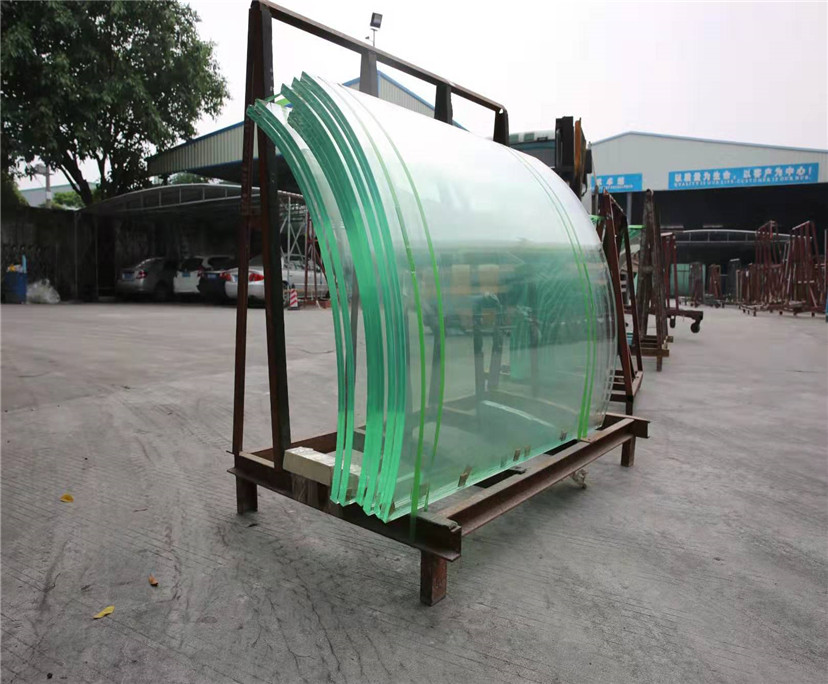

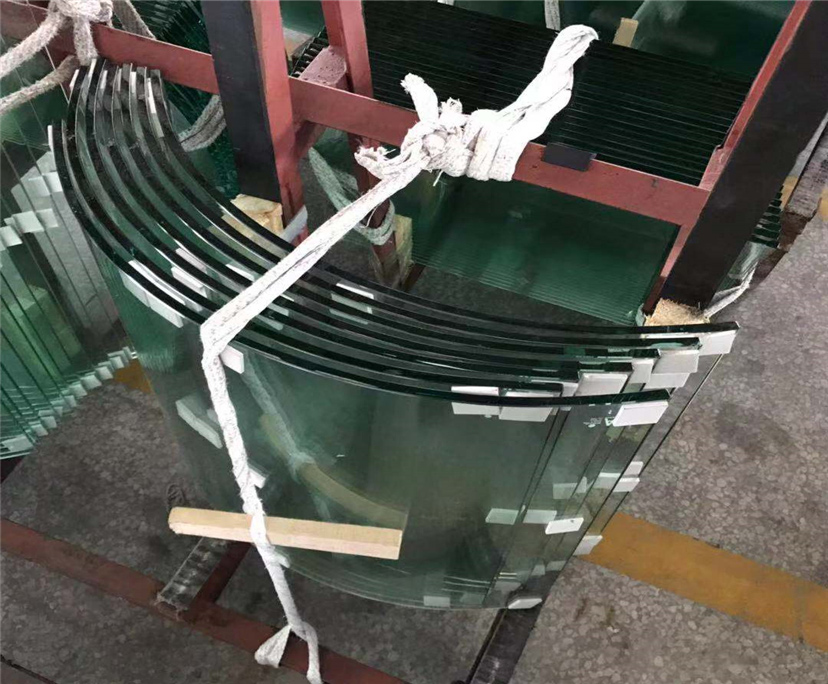

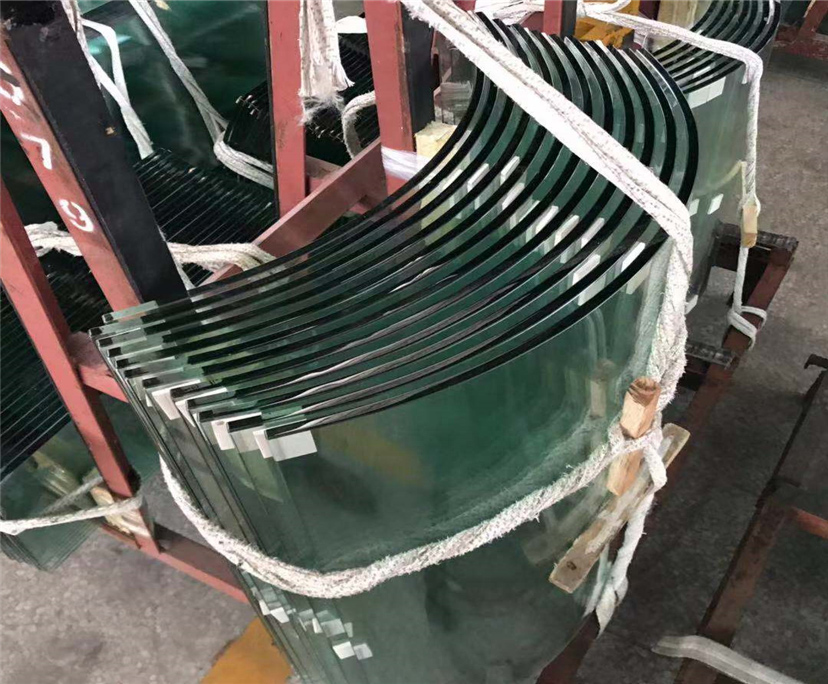

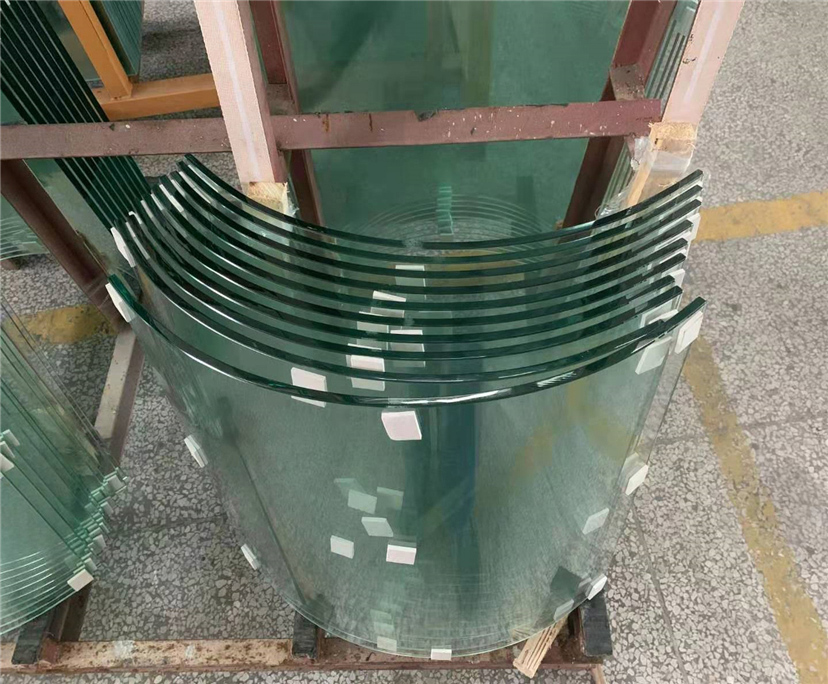

10mm clear curved tempered glass

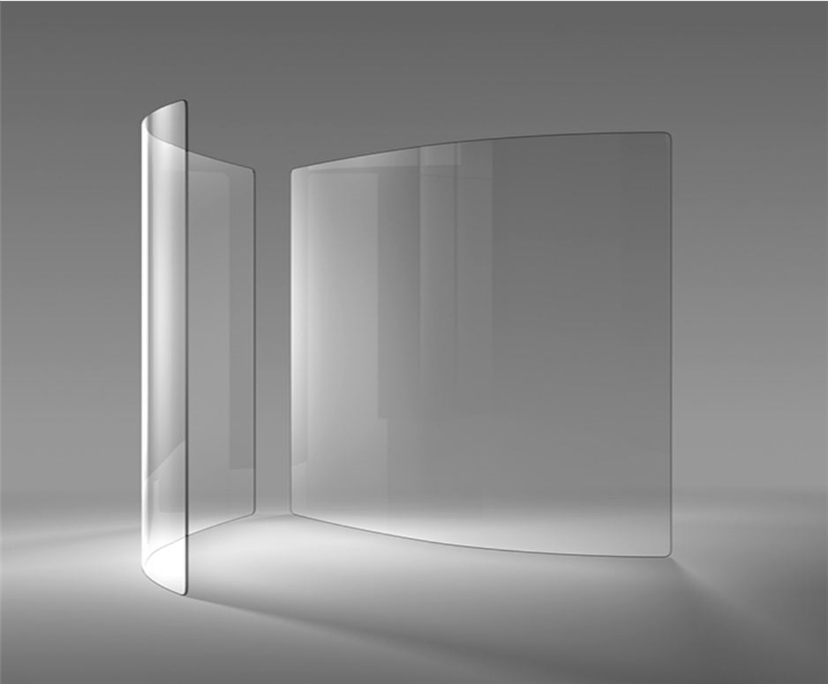

What is curved tempered glass?

10mm clear curved tempered glass is shaped by mold controlled by computer, rapidly and uniformly cooled immediately after it is heated to the designed shape. 10mm clear curved tempered glass has all the good properties of flat tempered glass. Tempered glass is a safety glass. 10mm clear curved tempered glass is actually a kind of prestressed glass. In order to increase the strength of the glass, chemical or physical methods are usually used to form compressive stress on the surface of the glass. When the glass is subjected to external force, the surface stress is first offset.Thereby improving the carrying capacity, enhancing the glass's own wind resistance, cold and heat, impact and the like.

Classification of curved tempered glass

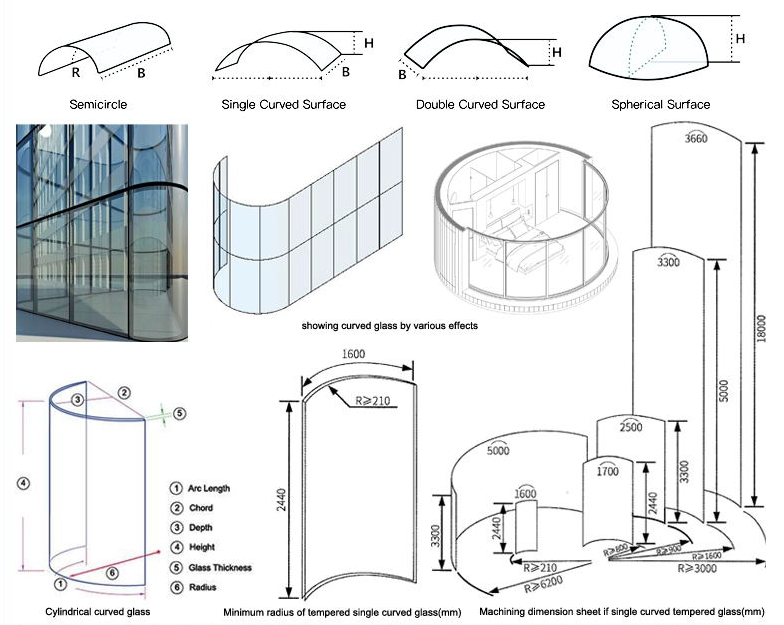

1.By shape

10mm clear curved tempered glass is divided into semi-circular arc surfaces, single curved surface, double curved steel surface, spherical surface.

2.By process

10mm clear curved tempered glass is also called quenched tempered glass. When the ordinary curved glass is heated in a heating furnace to a softening temperature (600 ° C) close to the glass, the internal stress is removed by its own deformation, and then the glass is removed from the heating furnace. The high-pressure cold air is blown to both sides of the glass by a multi-head nozzle and is rapidly and uniformly cooled to room temperature to obtain a tempered glass.the chemically tempered glass increases the strength of the glass by changing the chemical composition of the surface of the glass and is generally tempered by ion exchange.

3.Tempering degree

Tempered glass: tempering degree = 2~4N/cm, glass surface tempered glass surface stress α≥95Mpa;

Semi-tempered glass: tempering degree = 2N/cm, glass curtain wall semi-tempered glass surface stress 24Mpa ≤ α ≤ 69Mpa;

Super tempered glass: tempering degree > 4N/cm.

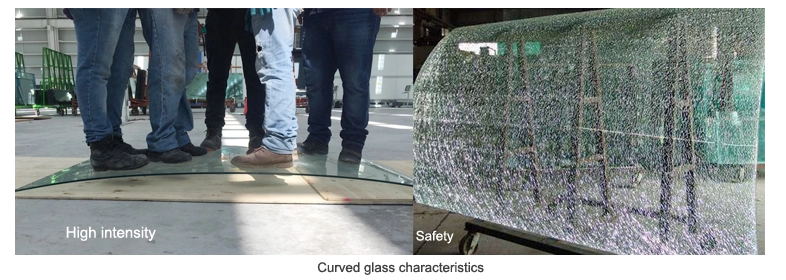

Advantage of curved tempered glass

1.safety

When 10mm clear curved tempered glass is damaged by an external force, the debris will become a honeycomb-like obtuse-angled small particle, which is not easy to cause serious damage to the human body.

2.high strength

The impact strength of tempered glass of the same thickness is 3 to 5 times that of ordinary glass, and the bending strength is 3 to 5 times that of ordinary glass.

3.Thermal stability

10mm clear curved tempered glass has good thermal stability, and can withstand a temperature difference of three times that of ordinary glass, and can withstand a temperature difference of 300 °C.

Application of curved tempered glass

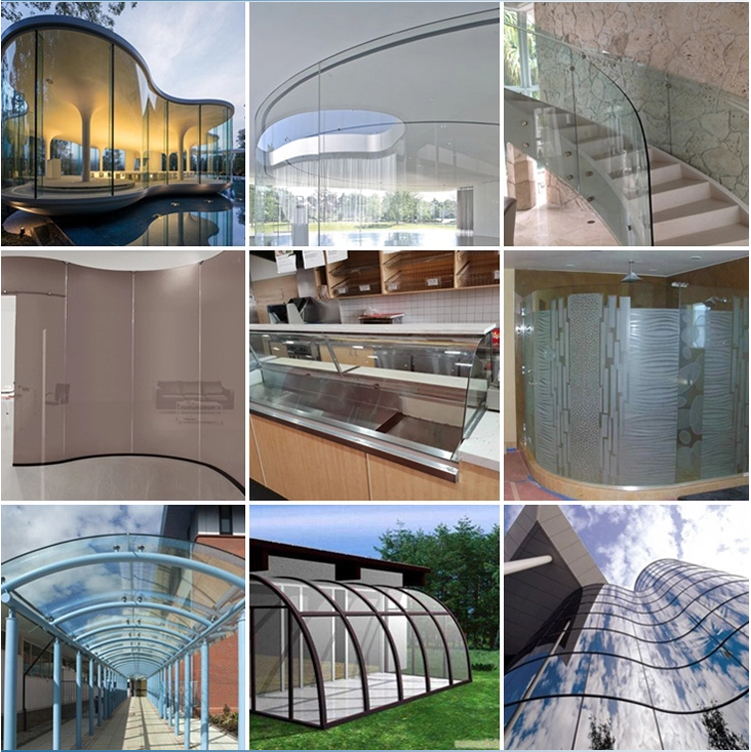

10mm clear curved tempered glass is a safety glass. Widely used in high-rise building doors and windows, glass curtain wall, indoor partition glass, lighting ceiling, sightseeing elevator access, furniture, glass railings, etc. Usually, 10mm clear curved tempered glass can be used in the following industries:

1. Architecture, building formwork, decoration industry (example: doors and windows, curtain walls, interior decoration, etc.)

2. Furniture manufacturing industry (glass coffee table, furniture package, etc.)

3. Home appliance manufacturing industry (TV, oven, air conditioner, refrigerator, etc.)

4. Electronics, instrument industry (mobile phones, MP3, MP4, watches and other digital products)

5. Automobile manufacturing industry (car windshield, etc.)

6. Daily product industry (glass cutting board, etc.)

7. Special industry (military glass)
