5mm+9A+5mm clear tempered double panel insulated glass manufacturers, 19mm clear tempered IGU manufacturers
Product Introduction:
Glass name: 5mm+9A+5mm clear tempered double panel insulated glass manufacturers, 19mm clear tempered IGU manufacturers
Other name: 5mm+9A+5mm clear tempered IGU factory, 19mm clear tempered insulated glass factory, 5mm+9A+5mm clear tempered hollow glass, 19mm clear tempered double glazing glass
Glass shape: flat insulated glass or curved insulated glass
Composition: 5mm clear tempered glass+ 9A dry gas+ 5mm clear tempered glass
Spacer: air or argon gas
Spacer thickness: 6A 9A 12A 15A 16A etc.
Glass color: clear, super clear, blue, green, grey etc.
Thickness of single glass: 4mm 5mm 6mm 8mm 10mm 12mm etc.
Product details
Introduction of insulated glass

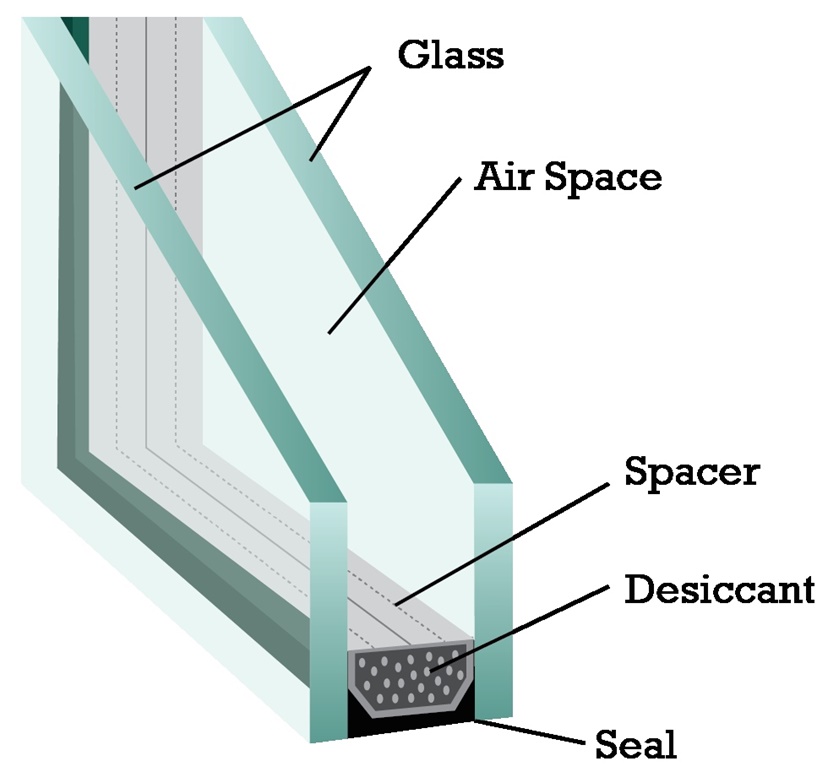

5mm+9A+5mm clear tempered double panel insulated glass,19mm clear hollow glass (IGU) also called insulated glazing glass, thermal insulation glass, double glazed glass. Insulated glass is composed of two layers of flat or curved glass, surrounded by high-strength high-density composite adhesive, the two pieces of 5mm tempered glass and seal, the glass of the bonding and sealing. The middle fill with dry gas, the spacer fill with desiccant to ensure that the glass between the air dryness. The function of air or argon gas spacer is reduce water vapor penetration. The insulated glass is sealed by a secondary edge seal and that make structural robustness to the insulated glass. The aluminum spacer contains desiccant and can absorb humidity from or within the air space.
Advantages of insulated glass
1. Energy saving effect
High-performance insulated glass, due to a special metal film, which reduces the load on indoor air conditioning (air-conditioning). The heat transfer coefficient is 1.4-2.8W (㎡•K), which is better than ordinary insulated glass. It also exerts great efficiency in reducing the indoor heating load. Therefore, the larger the window is opened, the more obvious the energy saving effect is.
2.Improve the indoor environment
High-performance insulated glass can intercept the considerable energy emitted by the sun into the room, thus preventing the discomfort caused by radiant heat and reducing the dizziness caused by the evening sun.
3.Rich colors and artistic
High-performance insulated glass has a variety of colors, and can be used according to the needs to achieve a more ideal artistic effect.
Application of insulated glass
Insulating glass is mainly used in buildings that require heating, air conditioning, noise or condensation prevention, and the need for direct sunlight and special light. It is widely used in residential, hotel, office buildings, schools, hospitals, shops and other places where indoor air conditioning is required.
