Insulated Glass
6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory
  • 6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory
  • 6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory
  • 6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory
  • 6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory
  • 6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory
6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory

6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory

Product Introduction:

Glass name: 6mm clear+9A+6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory

Other name: 6mm clear+9A+6mm tempered reflective IGU, 21mm tempered reflective insulated glass factory, 6mm clear+9A+6mm tempered reflective hollow glass, 21mm tempered reflective double glazing glass

Glass shape: flat insulated glass or curved insulated glass

Composition: 6mm tempered clear glass+ 9A dry gas+ 6mm reflective tempered glass

Spacer: air or argon gas

Spacer thickness: 6A 9A 12A 15A 16A etc.

Glass color: clear, super clear, blue, green, grey etc.

Thickness of single glass: 4mm 5mm 6mm 8mm 10mm 12mm etc.

Share

Product details

Introduction of insulated glass

6mm+9A+6mm clear reflective insulated glass,21mm clear hollow glass (IGU) also called insulated glazing glass, thermal insulation glass, double glazed glass. Insulated glass is composed of two or more layers of flat or curved glass, surrounded by high-strength high-density composite adhesive, the two or more pieces of 6mm tempered glass and seal, the glass of the bonding and sealing. The middle fill with dry gas, the spacer fill with desiccant to ensure that the glass between the air dryness. The function of air or argon gas spacer is reduce water vapor penetration. The insulated glass is sealed by a secondary edge seal and that make structural robustness to the insulated glass. The aluminum spacer contains desiccant and can absorb humidity from or within the air space.

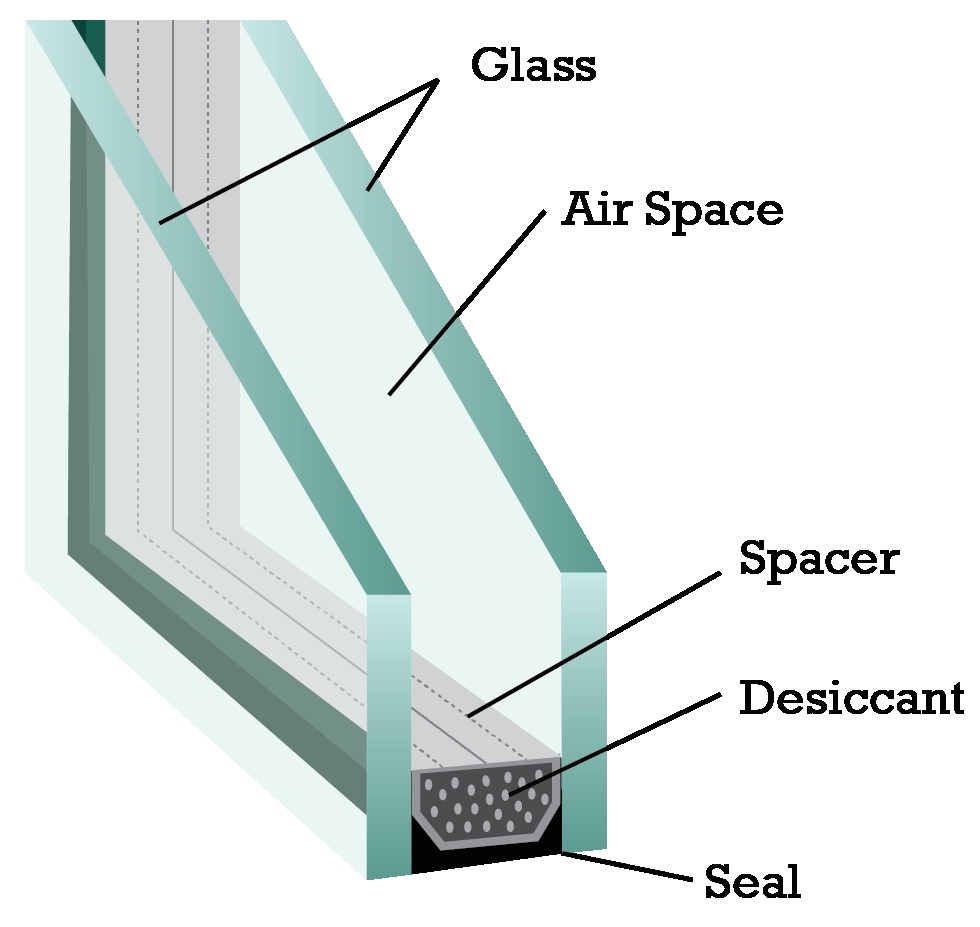

insulated glass structure.JPG

Advantages of insulated glass

1.Energy saving effect

High-performance insulated glass, due to a special metal film, which reduces the load on indoor air conditioning (air-conditioning). The heat transfer coefficient is 1.4-2.8W (㎡•K), which is better than ordinary insulated glass. It also exerts great efficiency in reducing the indoor heating load. Therefore, the larger the window is opened, the more obvious the energy saving effect is.

2.Improve the indoor environment

High-performance insulated glass can intercept the considerable energy emitted by the sun into the room, thus preventing the discomfort caused by radiant heat and reducing the dizziness caused by the evening sun.

3.Rich colors and artistic

High-performance insulated glass has a variety of colors, and can be used according to the needs to achieve a more ideal artistic effect.


Application of insulated glass

Insulating glass is mainly used in buildings that require heating, air conditioning, noise or condensation prevention, and the need for direct sunlight and special light. It is widely used in residential, hotel, office buildings, schools, hospitals, shops and other places where indoor air conditioning is required.


Parameters table of reflective insulated glass


6mm clear 9A 6mm tempered reflective insulated glass, 21mm tempered reflective IGU factory
