Low-E Glass
BTG 5mm 6mm CG crystal grey Low-E glass
  • BTG 5mm 6mm CG crystal grey Low-E glass
  • BTG 5mm 6mm CG crystal grey Low-E glass
  • BTG 5mm 6mm CG crystal grey Low-E glass
  • BTG 5mm 6mm CG crystal grey Low-E glass
  • BTG 5mm 6mm CG crystal grey Low-E glass
BTG 5mm 6mm CG crystal grey Low-E glassBTG 5mm 6mm CG crystal grey Low-E glassBTG 5mm 6mm CG crystal grey Low-E glassBTG 5mm 6mm CG crystal grey Low-E glassBTG 5mm 6mm CG crystal grey Low-E glass

BTG 5mm 6mm CG crystal grey Low-E glass

Product Introduction:

BTG 5mm 6mm CG crystal grey Low-E glass

Glass name: BTG 5mm 6mm CG crystal grey Low-E glass

Other name: supplier 5mm 6mm CG crystal grey Low-E glass, manufacturer 5mm 6mm CG crystal grey Low-E glass, wholesaler

Glass thickness: 5mm 6mm

Glass size: customized maximum: 2440mm*8000mm

Glass color: crystal grey

Certifications: BS6206/EN12150/CSI


Share

Product details

5mm 6mm CG crystal grey Low-E glass

Product features

1. The original color of glass surface is sinter the multilayer transparent and strong semiconductor film layer, which can reflect more than 80% of far infrared energy, excellent thermal insulation.

2. Mainstream crystal gray series glass have uniform color, long-term stability, soft color and elegant.

3. Eternal storage. Via CVD technology, the film has stable physical and chemical properties, weather resistance and durability. Therefore, CG Low-E glass can be stored eternally.

4. Monolithic glass can be used directly or combined into insulated glass and laminated glass.

5. BTG 5mm 6mm CG crystal grey Low-E glass has moderate visible light transmittance, lower outdoor reflectivity, weakening the influence of "glass light reflection".

6. Good reworkability. Like cutting, edge polished, tempering or hot bending, ceramic processing, etc. There is no need to do any special protection, and the process parameters can be adjusted appropriately.


Parameters table

Product descriptionVisible lightgSHGCSCU value w/m2*k
T%R(out)%R(in)%China JGJ/T 151US NFRCChina JGJ/T 151US NFRCChina JGJ/T 151US NFRCEuro EN673
Summer   dayWinter night
5mm CG   crystal grey glass65770.670.680.760.785.215.275.815.7
6mm CG   crystal grey glass60770.620.640.720.745.185.245.845.7
5mm   crystal grey BTG Low-E(2#) glass618100.550.560.630.643.532.873.723.7
6mm   crystal grey BTG Low-E(2#) glass56890.520.530.590.613.522.863.713.7
5mm   crystal grey BTG Low-E(2#)+12A+5mm clear glass5511160.490.480.560.551.891.951.921.9
6mm   crystal grey BTG Low-E(2#)+12A+6mm clear glass5010150.460.450.520.511.881.941.911.9
5mm   clear+1.52PVB+5mm CG crystal gray BTG Low-E(4#) glass54790.460.490.530.563.372.753.513.5
6mm   clear+1.52PVB+6mm crystal grey BTG Low-E(4#) glass598100.490.520.570.593.392.763.543.5
6mm   crystal grey+1.52PVB+6mm crystal grey BTG Low-E(4#) glass39680.370.40.420.473.372.753.513.5

Application

1. Tempered CG crystal grey Low-E glass

2. Laminated CG crystal grey Low-E glass

3. Insulated CG crystal grey Low-E glass

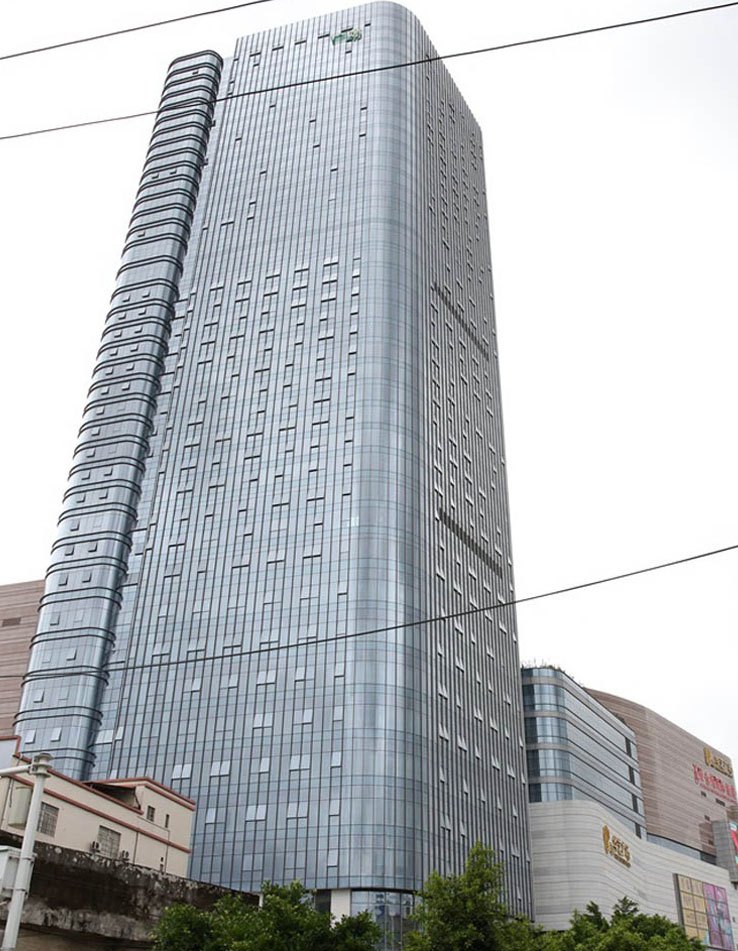

4. Crystal grey Low-E glass façade

5. Crystal grey Low-E glass window

6. Crystal grey Low-E glass door

7. Crystal grey Low-E glass inner skylight

BTG 5mm 6mm CG crystal grey Low-E glass

Specification

Glass brand name: BTG Better Glass

Glass thickness: 5mm 6mm

Glass size: customized maximum: 2440mm*8000mm

Certifications: BS6206/EN12150/CSI

Glass type: float glass, CG Low E glass

Glass shape: curved, flat

Packing: All crystal grey glass packed in safety strong polywood crate banded with steel strip, suitable for ocean and land carriage.

1. Put cork between two glasses.

2. Crate has space for forklift loading and unloading.

Delivery Time: 8-10days
