10.76mm PDLC smart switchable glass
Product Introduction:
10.76mm PDLC smart switchable glass is a special decorative glass for architectural decoration, also known as electronic curtains. This is a product based on membrane technology. The electrodes at the light-transmitting edge introduce current, and the alignment of the liquid crystal molecules is changed by turning on the power supply to control the transparency of the glass. The smart switchable glass can freely switch the transparency of the space. It is a curtain that can be remotely controlled, and privacy protection is under control.
Product details
Specification of glass:
Name: 10.76mm PDLC smart switchable glass , 10.76mm PDLC Privacy Glass,10.76mm PDLC Smart Glass,10.76mm PDLC privacy protection Glass, 10.76mm PDLC Magic Glass.
Technology: PDLC
Glass thickness: 8.76mm 10.76mm 13.14mm 17.52mm 21.52mm, etc.
Panel options: ordinary float glass, ultra-white glass, tinted glass, etc. (tempered glass is generally not recommended).
The thickness of smart film: customizable
Storage temperature: minus 20 degrees to 60 degrees Celsius
Drilling and trenching: not recommended
Privacy Distance: Shield any image 3 cm away from the other side of the glass.
Size: customized size, not beyond 1.8*3.3m.
Average energy consumption: about 5 watts per hour
Normal life: more than 10 years
how smart glass works?

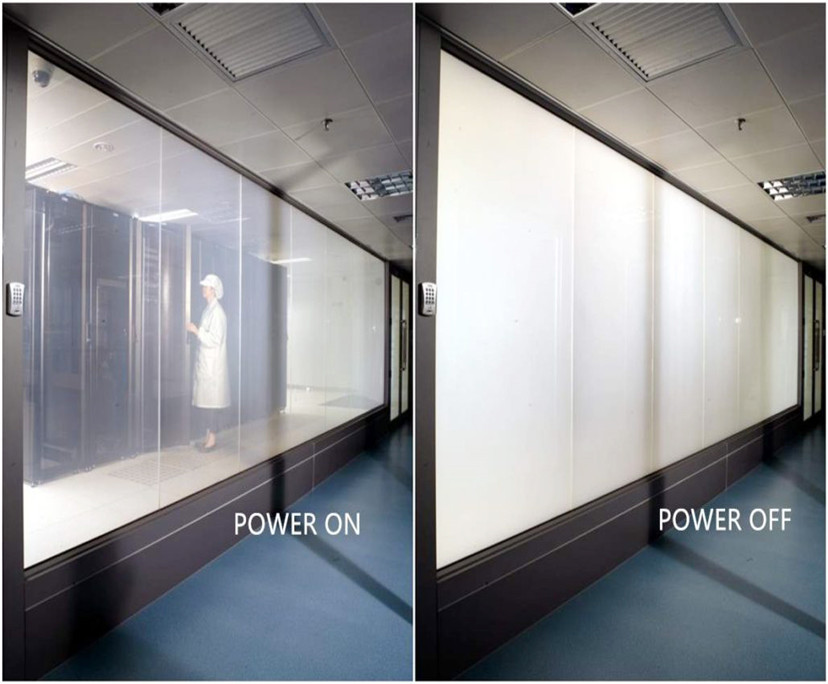

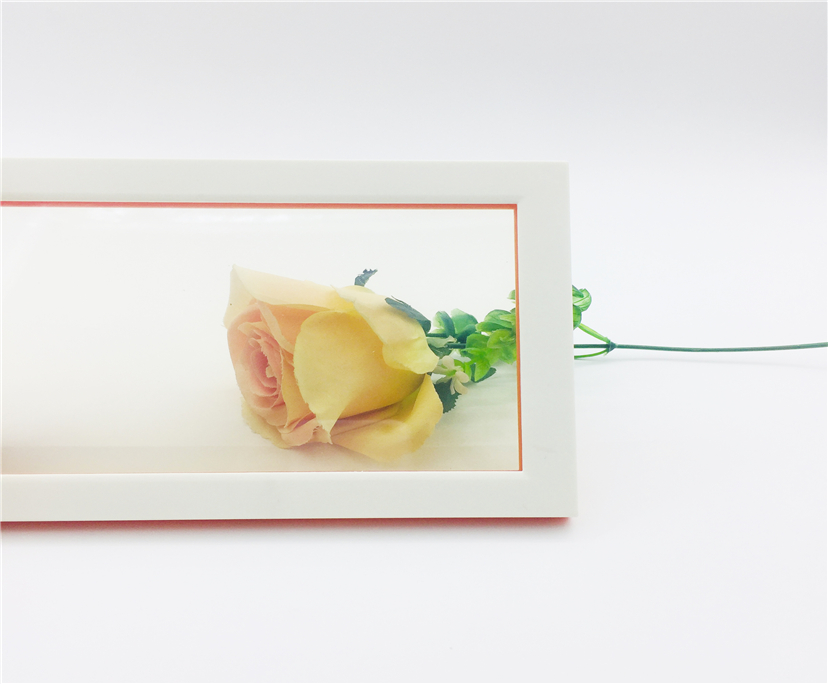

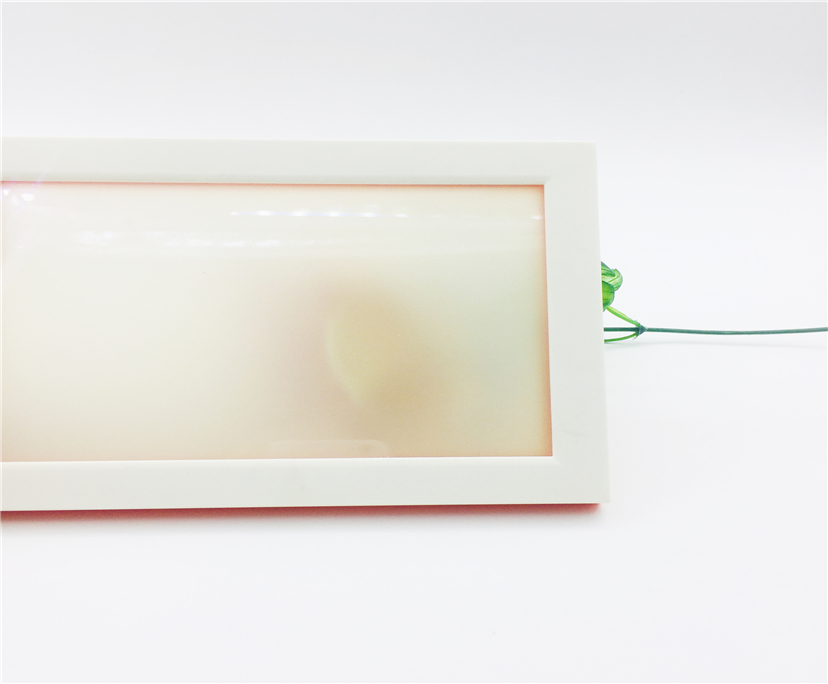

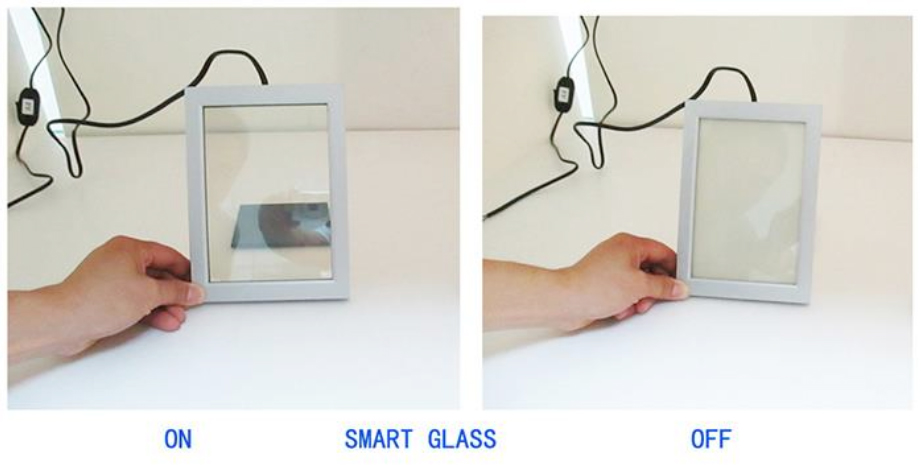

When the power is switched on, the liquid crystal molecule is aligned, the incident light passes through, and the privacy glass panel is cleared immediately.When the power is turned off, the liquid crystal molecules are randomly oriented, thus scattering light and making the privacy glass opaque (private).
Advantage of glass:
1. Privacy protection function: The maximum function of smart dimming glass is the privacy protection function, which can control the transparent opacity of glass at any time.
2. Projection function: Smart dimming glass is also a very good projection hard screen. In a high light environment, if you use a high lumen projector, the projection imaging effect is very clear and outstanding.
(Recommended for rear projection imaging)
3. It has the advantages of safety glass, including the safety performance to prevent debris splash after rupture, and the impact strength is good.
4. Environmental protection features: The dimming film and film in the middle of the dimming glass can insulate and block more than 99% of the ultraviolet rays and 98% of the infrared rays.
Part of the shielding infrared reduces heat radiation and transmission. The shielding of ultraviolet rays can protect the furnishings in the room from fading and aging due to ultraviolet radiation,
and protect people from diseases caused by direct ultraviolet rays.
5. Sound insulation characteristics: The dimming film and film in the middle of the dimming glass have sound damping effect. Partially block noise.
Application of glass:
1. Projection screen function.

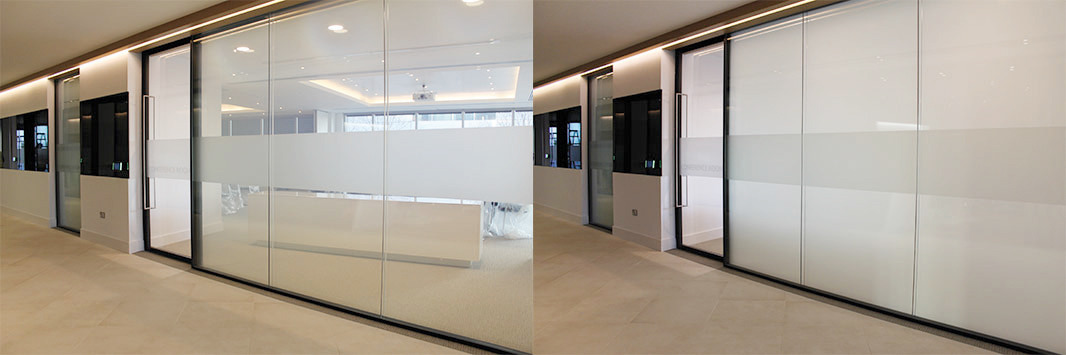

2. The office area, conference room, and monitoring room are separated.
3. External settings. Adding dimming glass to the balcony window
4. The indoor space is interrupted. Separating rooms with dimming glass improves space layout while ensuring privacy in different areas.
5. Under the premise of using the safe voltage, the dimming glass is used as a bathroom, and the toilet is partitioned.
The application of medical institutions can replace the curtains, function as partition and privacy protection, and it is more suitable for environmental protection, cleaning, and pollution.
6. Museums, exhibition halls, shopping malls, bank anti-theft applications
