BTG double curved strengthened glass
Product Introduction:
BTG hyperbolic strengthened glass
Glass name: factory hyperbolic strengthened glass
Other name: supplier hyperbolic strengthened glass, manufacturer hyperbolic strengthened glass
Glass type: float glass, hyperbolic strengthened glass
Glass size: customized maximum: 2440mm*8000mm
Color: clear, extra clear, Europe grey, F green, ford blue, ocean blue, crystal bronze, black.
Certification: BS6206/EN12150/CSI
Product details
How does the hyperbolic strengthened glass work?
BTG hyperbolic strengthened glass is a double curved strengthened glass formed by heating the float glass, and assisting the molding by the bottom mold, the main mold forming the top mold, and quenching according to the requirements of the hyperbolic shape pattern.
BTG double curved strengthened glass molding process:
The glass is softened by high temperature, the main drive motor of the molding section rotates, and the glass is stopped by conveying the glass to the specified position through electrical positioning. Corresponding to the mold position, the mold cylinder moves on the forming section, the upper mold is lowered, the two molds are closed and pressed to the glass, and then raised back to the position. The motor of the mold trolley is rotated to send the mold trolley and the formed glass into the tempering section.
Performance characteristics of double curved strengthened glass:
1. Safety. When the qualified strengthened glass is broken, the fragments are very small. The number of fragments in the area of 50mmx50mm is not less than 40 pieces. The section of the fragment is basically perpendicular to the surface.
2. Impact resistance. 1040g steel ball can withstand the impact of free fall from 1 meter high without breaking.
3. Bending strength. The bending strength can reach 200ma.
4. Optical properties. The optical properties of glass do not change during the tempering process.
5. Heat resistance stability. Pouring molten lead liquid (327 ° C) on glass at room temperature does not break. The strengthened glass is heated to 200 ° C and placed in 25 ° C water. The glass does not break.
Applications of BTG hyperbolic strengthened glass:
Hyperbolic strengthened glass is highly used in modern society, and more and more popular in art buildings.
1. double curved strengthened glass curtain wall

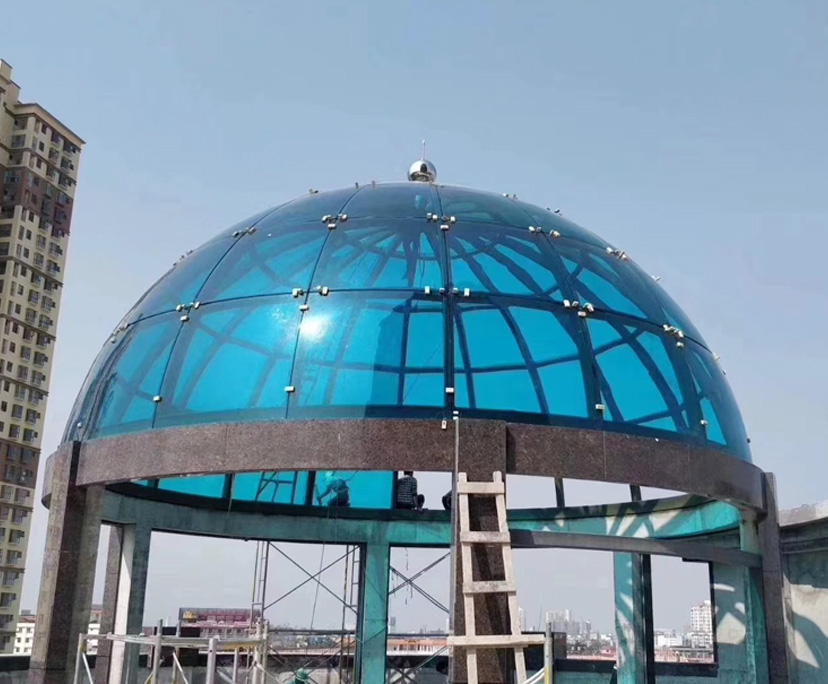

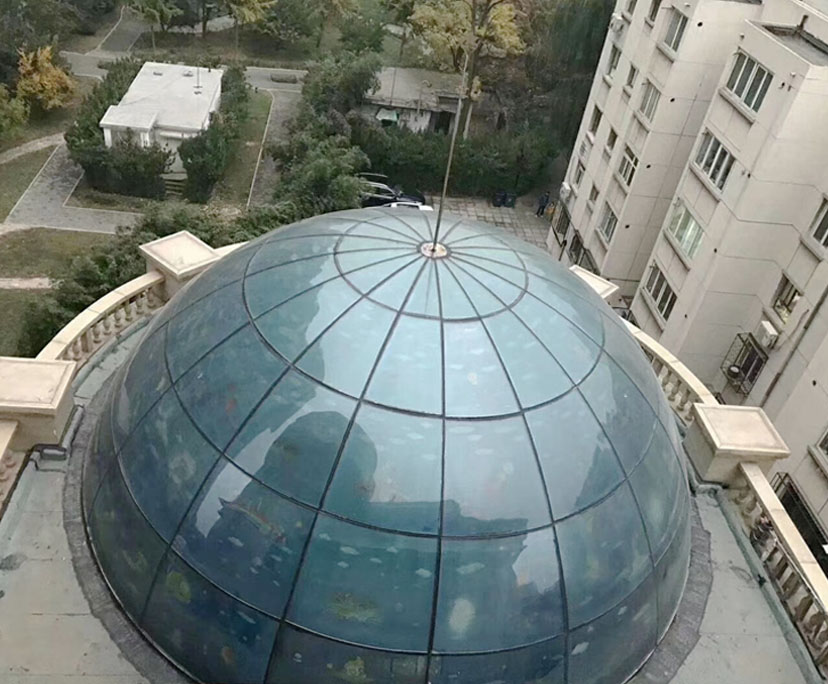

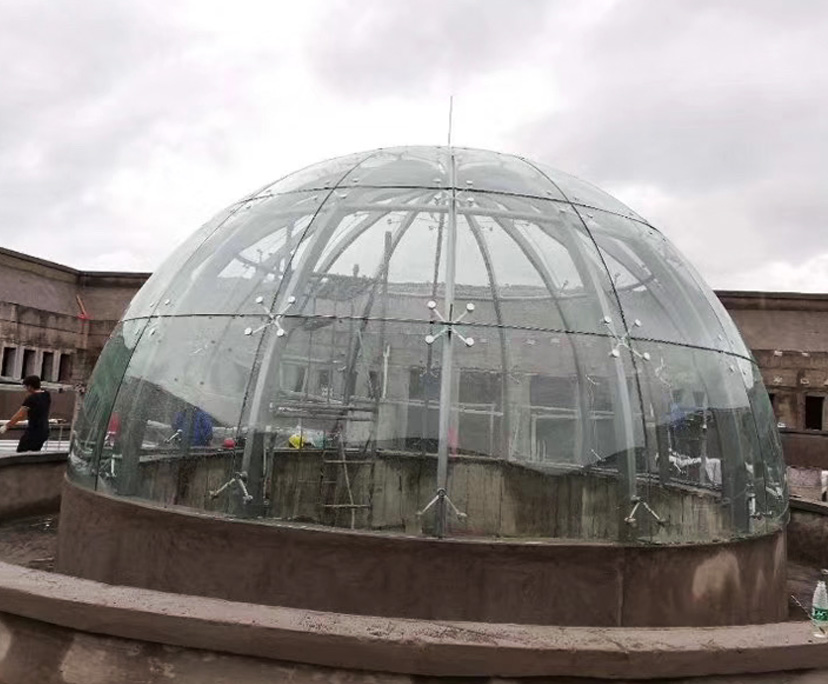

2. double curved strengthened glass skylight
3. hyperbolic strengthened glass sightseeing elevator
4. hyperbolic strengthened glass indoor partition wall
5. double curved strengthened glass barrier or screen
Specification:
Glass brand name: BTG Better Glass
Glass size: customized maximum: 2440mm*8000mm
Certification: BS6206/EN12150/CSI
Glass shape: double curved,hyperbolic
Packing: All glass packed in safety strong polywood crate banded with steel strip, suitable for ocean and land carriage.
1. Put cork between two glasses.
2. Crate has space for forklift loading and unloading.
Delivery time: 8-10days
