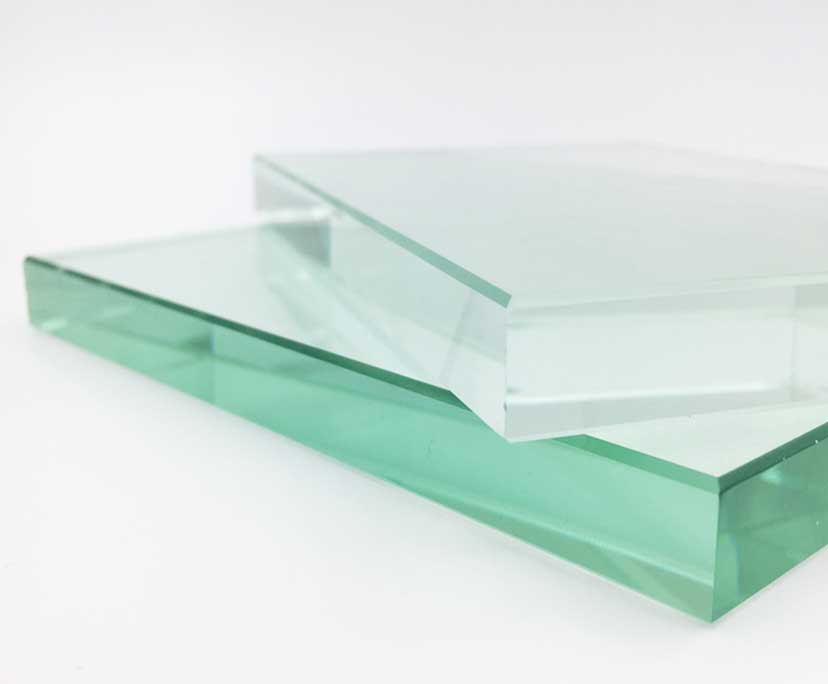

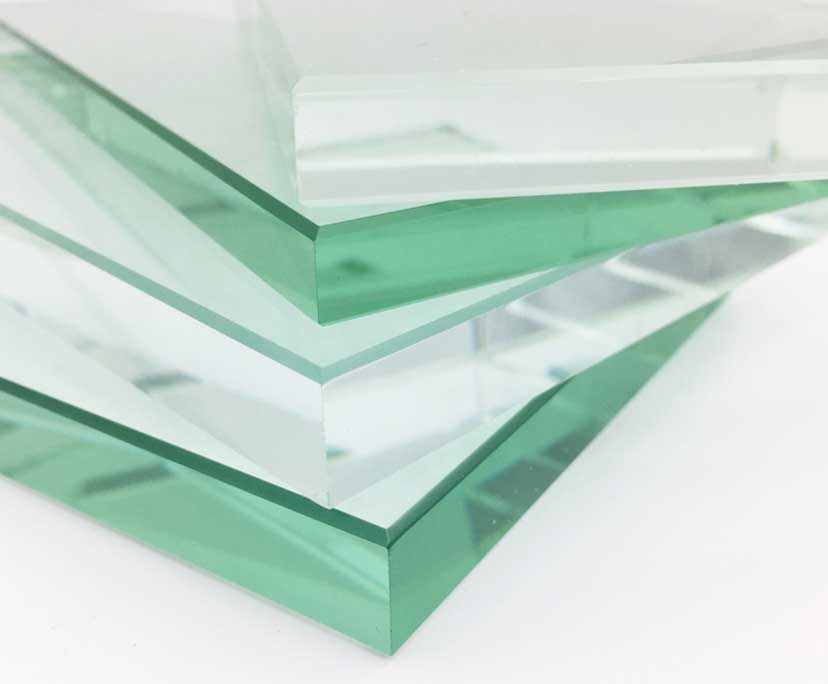

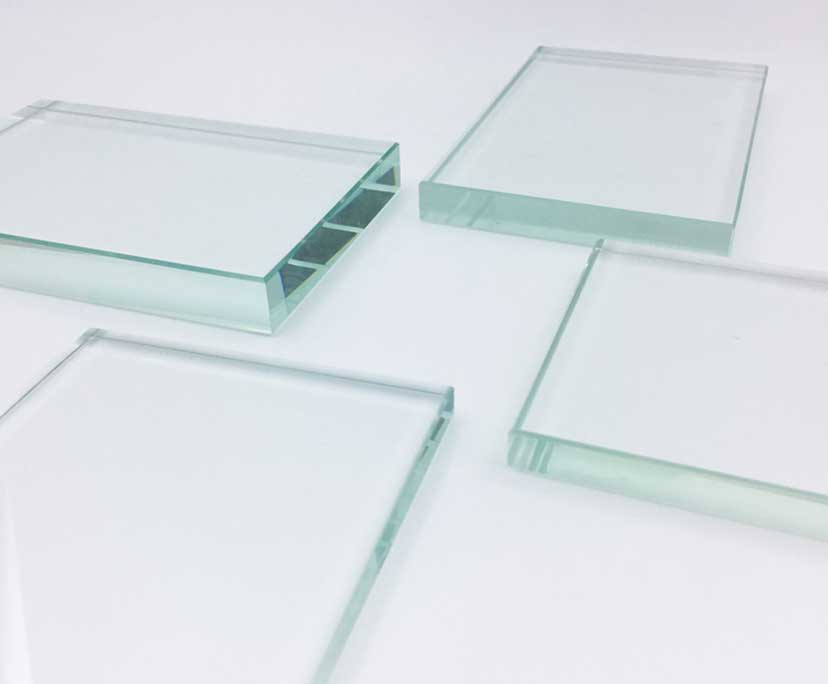

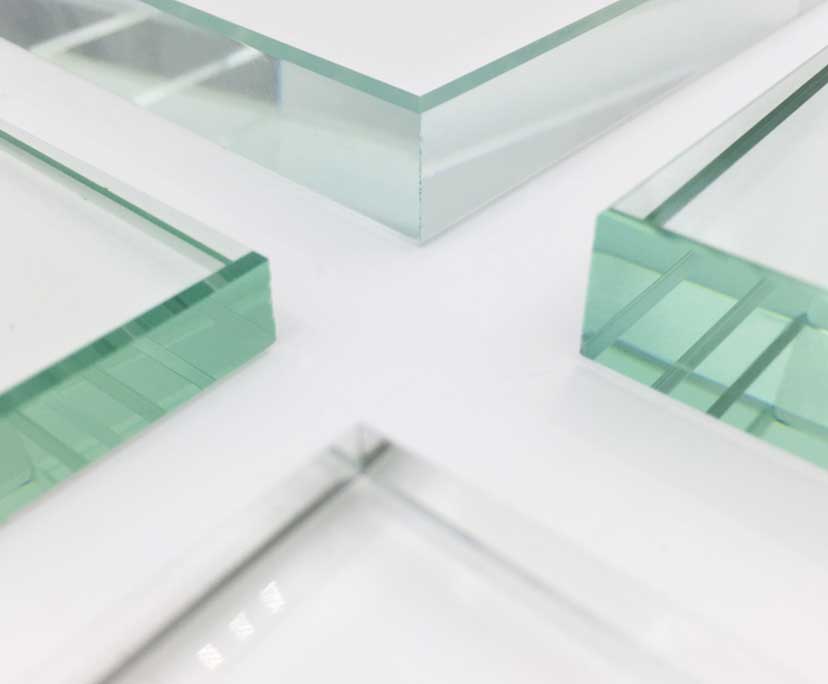

12mm clear toughened glass,12mm starphire tempered glass
Product Introduction:
Glass name: 12mm clear toughened glass,12mm starphire tempered glass
Other name: low iron tempered glass,ultra clear tempered glass,starphire tempered glass
Thickness: 12mm
Other thk: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 25mm
Size: Customized size (Max : 3300 x 13000mm, Min: 300 x 300mm)
Package: Exportation wooden crates
Product details
BTG-12mm clear toughened glass,12mm starphire tempered glass-Tempered glass factory&supplier&manufacturer in China
12mm clear toughened glass,12mm starphire tempered glass (also called toughened glass,full tempered glass,short for FT)is a type of glass with evev compressive stress on the surface which is made by heating float glass to nearly softening point and then cooling it down rapidly by air.During the instant cooling process,the exterior of glass is solidified due to rapid cooling while the interior of glass is cooled down relatively slowly.This process will bring the glasssurface compressive stress and the interior tensile stress which can improve the mechanical strength of glass by germination and result in good thermal stability.
Characteristic
Safety
When the glass is impacted, it is not easy to break. When the glass is broken, it is similar to honeycomb-shaped small obtuse-angle particle fragments, and will not cause serious harm to human body.
High Intensity
Toughened glass has 3-5 times higher impact strength than float glass of the same thickness.
Large Deflection
Compared with an ordinary glass of the same thickness, the deflection of tempered glass is 3-4 times larger than that of ordinary glass. When the tempered glass is subjected to load, its maximum tensile stress is not located on the surface of the glass as ordinary glass, but in the center of the tempered glass plate.
Thermal Stability
Tempered glass has good thermal stability. Compared with ordinary glass of the same thickness, the thermal impact strength of tempered glass is three times higher, and the temperature range of abrupt change is 220 - 250℃ . Compared with ordinary glass, the temperature range of tempered glass is only 70 - 100℃ . When tempered glass is subjected to a certain quench temperature, the compressive stress on the surface of the tempered glass is opposite to the tensile stress direction and cancels each other. Tempered glass is subjected to extreme heat, the surface produces compressive stress, beca use the glass compressive stress is several times the tensile stress, so tempered glass can also withstand a certain degree of hot temperature.
Specification
Thickness: 12mm
Available Size: Min size: 300×300mm,max size: 3300×13000mm
Color: Clear,ultra clear,euro gray,dark grey,F green,dark green,Ford blue,dark blue,etc
Edge: Polished edge(c edge,pencil edge),flat edge,drill hole,etc
Application
Building Curtain wall, Windows, Doors, Exhibition Hall, Shower Room, Furniture Glass.
